5K22 RESTROOM TRAILER
Specifications
Body Length: 120”
Overall Length: 168”
Body Width: 66”
Overall Width: 87.50”
Height: 110”
GVWR: 3,500lbs
Dry Weight: 1,455lbs
Cargo Carrying Capacity: 2,045lbs
GAWR: 3,500 lbs
Tire Rating: 2,200 (ea)
Tire PSI: 65 PSI cold
Wheel Rating: 2,830lbs
Fresh Water Tank: 20 Gallons
Waste Water Tank: 45 Gallons
Coupler Size: 2”
5k22 features
Body
Dispensers
Plumbing
- STEEL TUBE MAIN FRAME 66" x 120"
- STEEL DECK
- 64" x 54" x 18" STEEL STORAGE CABINET
- 64" x 48" x 18" STORAGE BED
- 48" x 18" x 18" STEEL SINK CABINET
- FOLD DOWN TAILGATE WITH LATCH
- RETRACTABLE STEP
- A-FRAME PLATFORM DECK
- 2" COUPLER
- ADJUSTABLE COUPLER CHANNEL
- CHAIN RETAINERS
- 10.75" x 32" STEEL FENDER
- FENDER BACK
- A-FRAME JACK
- G70 CHAINS W/ LATCH CHAIN RETAINER
- POWDER COAT FRAME & CABINETS (WHITE)
Plumbing
Dispensers
Plumbing
- 20 GALLON UV RESISTANT FRESH WATER TANK
- 45 GALLON WASTE WATER TANK
- RESTROOM ENCLOSURE
- LOCKING LATCH
- ENCLOSURE DOOR CATCH
- PRIVACY INDICATOR
- HAND FLUSH GRAVITY FED TOILET
- TANK FILL VALVE
- UV RATED SUPPLY/DRAIN LINES
- STAINLESS STEEL SINK BASIN
- 3" WASTE VALVE
- LEAD FREE BRASS FAUCET
- FRESH TANK MOUNTING BRACKETS
- TANK VENT PIPE
- BLACK WATER DRAIN HOSE
- HOSE CARRIER
- BLACK TANK MOUNTING RAILS
Dispensers
Dispensers
Wheels/Suspension
- DUAL ROLL TOILET PAPER DISPENSER
- STAINLESS STEEL TOILET SEAT COVER DISPENSER
- METAL ENCLOSED PAPER TOWEL DISPENSER
- LIQUID SOAP DISPENSER
Wheels/Suspension
Wheels/Suspension
Wheels/Suspension
- ST225/75R/15 TIRES
- 15 X 6 STEEL SPOKE WHITE WHEELS
- TORSION AXLE WITH ELECTRIC BRAKES
- BREAK AWAY SWITCH W/ 12V BATTERY
Towing
Wheels/Suspension
Electrical
- 2" COUPLER
- PIPE MOUNT FRONT JACK
- GRADE 70 SAFETY CHAINS
- SAFETY CHAIN RETAINERS
- CHAIN COUPLING LINKS
- COUPLER ADJUSTMENT RAIL
Electrical
Wheels/Suspension
Electrical
- AMBER LED FRONT SIDE MARKER LIGHTS
- RED LED REAR MARKER LIGHTS
- LED TAIL LIGHTS
- LED LICENSE PLATE LIGHT
- JUNCTION BOX
- 7 WAY PIN RV STYLE PLUG
- MOLDED PLUG CABLE
- FMVSS REFLECTORS

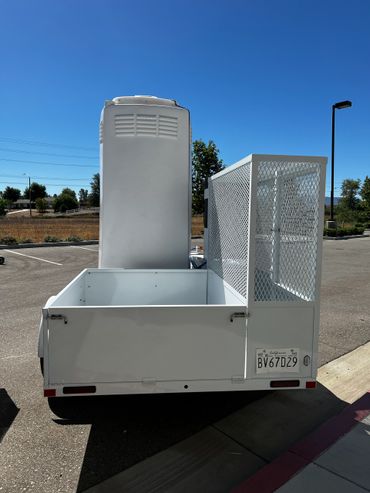

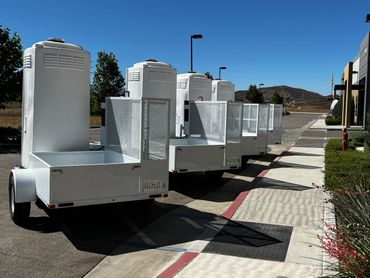

Photo Gallery
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:370,cg:true)
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:370,cg:true)
-eed3fec.jpg/:/rs=w:370,cg:true,m)
Frequently Asked Questions
Please reach us at baussmfg@gmail.com if you cannot find an answer to your question.
Please contact us for the current pricing as the cost of raw materials, parts, and shipping is constantly changing.
No, all models are built to order.
Depending on the quantity ordered, lead time is generally around 8 to 12 weeks but we always strive to finish and deliver your trailer as soon as possible.
No, we currently do not rent trailers. We only design and build.
Absolutely. If you purchase a trailer from us, we want it to be tailored and designed for the specific job and use so you are able to get the maximum amount of value. We can change storage sizes/methods, features, and a number of other things.
Yes, generally the price for 1-5 trailers is the same and anything above 5 trailers will be given a discount. This is primarily because we are able to save money on freight and pass that savings on to you.
We sell directly to cities, counties, and state agencies. In addition, we serve private companies and those bidding on government contracts.
